These photos of everyday life at Hmeymim say a lot about the Russian Air Force operations in Syria

Dec 22 2015 - 17 Comments

These photos provide lots of details about the operations of the Russian Air Force contingent in Syria.

The Russian MoD has recently made available some really cool photographs showing ordinary day life at Hmeymim airfield, near Latakia, the headquarters of the Russian Air Force contingent in Syria.

By taking a look at the images we can gather interesting details about the jets and helicopters deployed to the airbase in northwestern Syria: payload, mission markings, insignia (or lack of thereof) etc.

The Mi-8AMTSH reportedly carry the “Rychag-AV” active jamming station.

Hip

The 16 Su-30SM Flanker-H multirole aircraft carry both R-27R/ER semi-active radar-guided air-to-air missiles (AAMs) and R-73 short-range AAMs as well as OFAB-250-270 HE unguided bombs.

Su-30SM taxi

Su-30SM crew

The Su-25SM, that started to fly with four B8M1 (S-8) rocket pods are now carrying also a B13L rocket pods to use with S-13 rockets from 5-tube launchers. The OFAB-250 iron bombs are also often carried by the Frogfoot attack planes (the 250 kg bombs are certainly Russia’s most used weapon by tactical planes in Syria) as the images prove. Interestingly, it seems that at least one of the 12 Su-25s (and a Su-34, not visible in the images in this post) deployed to Latakia still lacks the typical Red Star insignia.

Su-25 rockets

Su-25 dusk

Su-25 FABs

The 12 Su-34 Fullbacks carry KAB-500 TV guided bombs and FAB-500 dumb bombs and have been spotted carrying KAB-1500s as well as 4 ODAB-500PMV thermobaric bombs and electro-optical guided KAB-500KRs too. After carrying AAMs for self-protection in the aftermath of the Su-24 shootdown by a Turkish F-16, the Su-34s don’t seem to carry air-to-air missiles lately: the super-MEZ (missile engagement zone) Russia has created over Syria with the Moskva and the S-400 deployed to Latakia has made the Russian planes safe enough to fly without air-to-air missiles…

Su-34 OFAB

On the other side, they have started sporting red star silhouettes (most probably) to mark 10 air strikes: with 12 mission marks, the Su-34 “25 Red” has performed 120 raids (or more).

Su-34 kill markings

Su-34 aircrew

The about 30 Su-24s (it’s not clear whether the lost one was replaced or not), carry OFAB-250-270 HE fragmentation bombs.

Su-24 takeoff

Here below, an unarmed Su-24 (possibly returning from a raid):

Su-24 unarmed

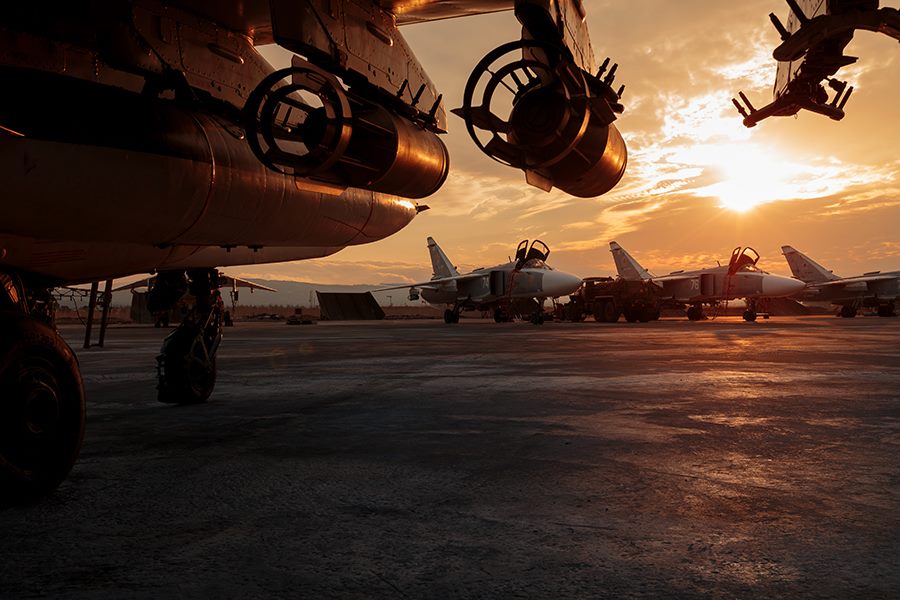

OFABs

Image credit: Russian MoD
