Tornado reheat (and fuel dumping)

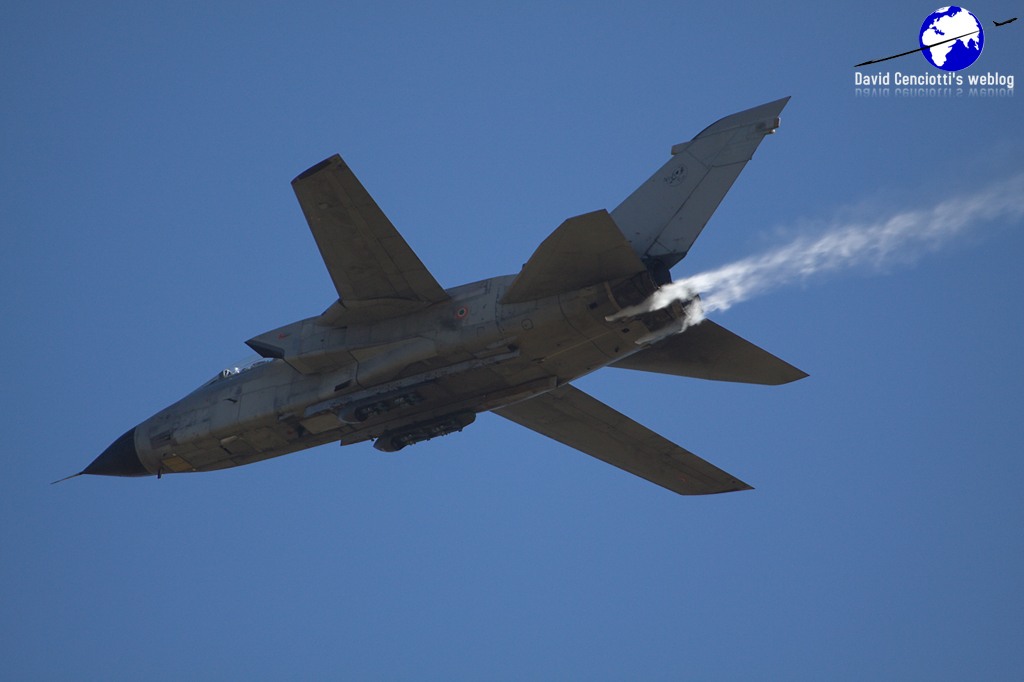

If you look for pictures of Italian Tornados taken few seconds after take off you’ll find a few showing what appears to be a fuel leakage (similar to the one posted below) that many describes as “fuel dumping”.
Actually, that has nothing to do with the fuel dump, as the Tornado’s jettison outlet is located at the top rear of the fin. Instead, it is reheat drain: when reheat is cancelled, there’s a temporary overpressure caused by unburnt fuel (accumulated in the jet pipe, upstream of the nozzles, after being injested by the fuel injectors when the Afterburner ignitor is no longer functioning) that is automatically relieved by venting some 30 Kg (66 Lbs) of fuel through valves located underneath the jet pipe.
