UK F-35B Performs World’s First Shipborne Rolling Vertical Landing During HMS Queen Elizabeth Trials

The F-35 Patuxent River Integrated Test Force (ITF) achieved a new milestone performing a Shipborne Rolling Vertical Landing (SRVL) on aircraft carrier HMS Queen Elizabeth.

On Oct. 13, an F-35B STOVL (Short Take Off Vertical Landing) variant of the Joint Strike Fighter performed the first  Shipborne Rolling Vertical Landing (SRVL) on the flight deck of HMS Queen Elizabeth, as part of the ongoing First of Class Flight Trials (Fixed Wing), or FOCFT (FW). BAE Systems test pilot Pete “wizzer” Wilson, achieved the F-35B’s first real SRVL touching down at about 40 knots and decelerating to a standstill in about 175 feet.

Britain’s newest aircraft carrier (able to accommodate up to 24 F-35Bs out of the planned 138 F-35 Lightning jets) and the F-35 Patuxent River Integrated Test Force (ITF) are conducting a variety of flight maneuvers and deck operations to develop the F-35B operating envelope for QEC carriers.

A composite image of the first SRVL.

Among the most important parts of the trials are the rolling vertical landings: as the acronym suggests, STOVL aircraft use the vertical landing to return to the ship. Using this kind of procedure, the approaching aircraft slowly reaches a hovering position to the port side of the ship before moving sideways over the deck and descending slowly. This technique has pretty strict weight requirements because of the thrust required to keep the aircraft airborne the time needed to put the wheels down. The rolling technique is intended to allow pilots to recover to the ship with more stores: the combination of thrust from its rotating nozzle, lift-fan and lift generated by the wing as an effect of the (slow) forward movement of the aircraft can save up to 7000lbs greater all up weight (UAW). Without the SRVL technique, the F-35B would be forced to jettison some or all of its external store when returning to the ship.

According to some sources the Soviet Yak-38 “Forger” jets could perform rolling landings on carrier decks but required the use of a safety barrier net; however, it’s not clear whether actual tests were conducted at sea.



In order to prepare to the first SRVL pilots and engineers tested the new technique using BAE Systems’ F-35/QEC Integration Simulator—a full motion, dome simulator—based in Warton, England. Some 3,000 takeoffs and landings were important to discover “where the edges of the test envelope are,” said Royal Air Force Sq. Ldr. Andy Edgell, FOCFT (FW) lead test pilot at the Pax River ITF.

“SRVL tests are truly experimental,” Edgell said. “It involves landing a fast jet onto an aircraft carrier with forward relative speed but without the braking assistance typically provided by an arresting gear and hook. It’s going to be a really rewarding moment for British aviation to watch that procedure actually take place.”

Back in 2007, Qinetiq’s VAAC Harrier testbed was used by the Aircraft Test and Evaluation Centre using a “dummy deck” at Qinetiq’s Boscombe Down site in Wiltshire, to assess the possibility to perform SRVL approaches as a way to use thrust-vectoring to a slow speed while still gaining the benefit of wing-borne lift.

The UK is the only nation currently planning to use the SRVL technique. However, the US Marine Corps and the Italian Navy (which should operate the F-35B to replace the AV-8B+ Harrier II from Italy’s Cavour aircraft carrier in the future) might take advantage of the rolling landing in the future, leveraging the testing conducted by the F-35 ITF aboard HMS Queen Elizabeth.

Following the crash occurred on Sept. 28 and involving a U.S. Marine Corps F-35B, the U.S. Services and international partners temporarily suspended F-35 flight operations while conducting a fleet-wide inspection of a fuel tube within the engine on all F-35 aircraft. British F-35Bs involved in the flight trials from HMS Queen Elizabeth and Italian F-35 were not grounded though, as inspections did not find the faulty part.

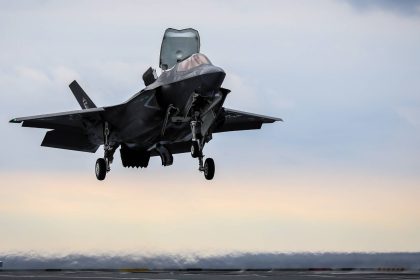

Top image credit: Royal Navy / Crown Copyright

Here Are Some Photographs of the F-35B Lightning Jets Landing on (and Launching From) Britain’s Newest Carrier for the First Time

Royal Navy Commander Nathan Gray and RAF Squadron Leader Andy Edgell were the first pilots to land their F-35 Lightning stealth jets on the flight deck of HMS Queen Elizabeth.

In the last 24 hours we have commented two quite different F-35B Lightning II-related news: the first air strike in Afghanistan and the first crash in South Carolina. Both events involved U.S. Marine Corps STOVL (Short Take Off Vertical Landing) variant aircraft. However, these were not the only newsworthy events: on Tuesday Sept. 25, 2018, Royal Navy Cmdr. Nathan Gray and Royal Air Force Sq. Ldr. Andy Edgell, both test pilots at the F-35 Integrated Test Force at NAS Patuxent River, Md., were the first pilots to land the stealth F-35B on board HMS Queen Elizabeth.

The first landings and subsequent take-offs from HMS Queen Elizabeth “are the culmination of a British endeavor lasting more than a decade to bring an aircraft carrier back to the UK’s arsenal,” says an official U.S. DoD release.

Two F-35B Lightning II fighter jets successfully landed onboard HMS Queen Elizabeth for the first time this week, laying the foundations for the next 50 years of fixed wing aviation in support of the UK’s Carrier Strike Capability.
Royal Navy Cmdr. Nathan Gray made history by being the first to land on, followed by Royal Air Force Sq. Ldr. Andy Edgell, both test pilots at the Integrated Test Force (ITF) based at Naval Air Station Patuxent River, Maryland.
Photo courtesy of Lockheed Martin

The landings on Britain’s newest aircraft carrier (able to accommodate up to 24 F-35Bs out of the planned 138 F-35 Lightning jets) kicked off the first of two First of Class Flight Trials (Fixed Wing) phases, held back-to-back this fall, where the ITF team plans to perform a variety of flight maneuvers and deck operations to develop the F-35B operating envelope for QEC carriers. According to the ITF, the tests “will evaluate jet performance on over 200 test points during different weather and sea conditions as well as the aircraft’s integration with the ship. A third FOCFT (FW) phase followed by operational testing is scheduled for 2019.”

Two F-35B Lightning II fighter jets successfully landed onboard HMS Queen Elizabeth for the first time this week, laying the foundations for the next 50 years of fixed wing aviation in support of the UK’s Carrier Strike Capability. Shortly afterwards, once a deck inspection has been conducted and the all-clear given, Royal Navy Cmdr. Nathan Gray, F-35 Integrated Test Force at NAS Patuxent River, Md., became the first pilot to take off using the ship’s ski-ramp.
Courtesy photo by Royal Navy

The first landings were performed as HMS Queen Elizabeth operated off the U.S. East Coast. The aircraft carrier left Portsmouth in August, crossing the Atlantic to conduct the flying trials and joint training with the US Navy. The flight trials are scheduled to take around 11 weeks and +500 take-off and landings. The target is to be ready for a deployment from 2021.

F-35B prepares to land. (LM)

In an official Royal Navy release, the Commanding Officer of HMS Queen Elizabeth, Captain Jerry Kyd, said: “I am quite emotional to be here in HMS Queen Elizabeth seeing the return of fixed-wing aviation, having been the captain of the aircraft carrier which launched the last Harrier at sea nearly eight years ago.

“The regeneration of big deck carriers able to operate globally, as we are proving here on this deployment, is a major step forward for the United Kingdom’s defence and our ability to match the increasing pace of our adversaries. The first touch-downs of these impressive stealth jets shows how the United Kingdom will continue to be world leaders at sea for generations to come.”

Two F-35B Lightning II fighter jets successfully landed onboard HMS Queen Elizabeth for the first time this week, laying the foundations for the next 50 years of fixed wing aviation in support of the UK’s Carrier Strike Capability.
Royal Navy Cmdr. Nathan Gray made history by being the first to land on, followed by Royal Air Force Sq. Ldr. Andy Edgell, both test pilots at the Integrated Test Force (ITF) based at Naval Air Station Patuxent River, Maryland.
Photo courtesy of Lockheed Martin

Commodore Andrew Betton, the commander of the UK’s Carrier Strike Group, said: “The Queen Elizabeth-class carriers have been specifically designed and built to operate the F-35, offering an immensely flexible and potent combination to deliver military effect around the world.

F-35B on the ski jump. (LM)

“Conducting these trials is a critical and exciting step on this journey and I applaud the many thousands of civilian and military personnel who have played a part in bringing the strategic ambition to reality.”

Royal Navy Cmdr. Nathan Gray in his F35B following the first deck landing aboard HMS Queen Elizabeth. Gray and Royal Air Force Sq. Ldr. Andy Edgell, both test pilots at the F-35 Integrated Test Force at Naval Air Station Patuxent River, Md, landed the first two jets on the new British aircraft carrier this week.
Courtesy photo by Royal Navy





Timelapse video of forward Island being installed on UK’s future supercarrier

Mar. 14 saw the Aircraft Carrier Alliance, an alliance of several ship building companies (namely BAE Systems, THALES, Babcock and DE&S) released a time lapse video of the installation of HMS Queen Elizabeth‘s first of two islands.

QE-21low

Image credit: Royal Navy / UK MoD

The hull of the carrier, which is nearly as large as a Nimitz class carrier, and will host F-35B STOVL (Short Take Off Vertical Landing) 5th generation planes, has almost been completed and the inclusion of one of the islands which had been constructed in Portsmouth and brought to Scotland by barge makes the hulk something resembling an aircraft carrier at last.

The two carriers (Queen Elizabeth & Prince of Wales) are being built in a modular fashion in several yards all over the UK and then  shipped to Rosyth in Scotland to be assembled into the finished article.

This isn’t a new process but one that is used in the construction of cruise ships and other large ocean going vessels.

Here’s the computer generated video of the construction process

The real thing

Richard Clements for TheAviationist.com

Enhanced by Zemanta

Stunning graphics show UK’s future (twin-island) supercarriers

Not as large as U.S. flattops but 280 meters in length hence longer than the London’s Palace of Westminster: this is the size of HMS Queen Elizabeth and Prince of Wales, UK’s Royal Navy future flagships.

The team behind the future aircraft carriers have produced a series of rendering whose aim is to demonstrate the scale of the carriers. To give a better idea of the size of the 65,000-tons leviathan, the artists put the HMS Queen Elizabeth, on the Thames next to the Palace of Westminster, and the HMS Prince of Wale,s at Victory Jetty in Portsmouth.

QE 2

Last summer, UK’s helicopter carrier HMS Ocean, currently Britain’s biggest warship, was docked on the Thames at Greenwich with several helicopters on board as part of the anti-terrorist effort put in place for the London Olympics.

The two aircraft carriers, that will host the F-35B (the Short Take Off Vertical Landing version of the Joint Strike Fighter that will replace the Harrier “jump jet” untimely retired as a consequence of 2010’s spending review), are expected to enter service later this decade.

QE 1

Noteworthy, unlike any previous design, the new aircraft carrier will feature a twin-island on the flight deck.

QE 3

Image credit: Royal Navy / UK MoD
